4U Rackmount Chassis for EATX Motherboard
- EIA RS-310C 19″ Rackmount Standard
- Construction: Heavy Duty Cold Rolled Steel
- Support EATX M/B (Max. to 12″ x 13″) SSI EEB 3.0
- Supports PS/2 type power supply
- Front Door: Two Doors With Keylock and Thumbscrew
- Air Filter: Inside Front Door (Washable)
- Flexible Hold Down Bar Designed
Specification
Specification
System Board
Support EATX M/B (Max. to 12″ x 13″) SSI EEB 3.0

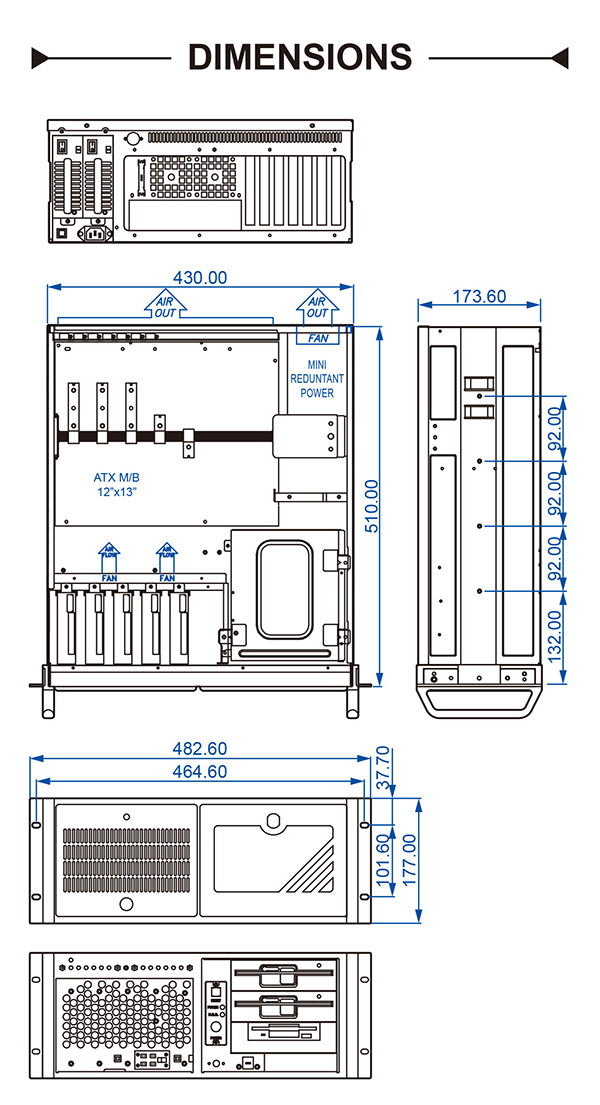

Dimension (W x D x H)
483 x 510 x 177mm (19.0″ x 20.1″ x 7.0″)
Drive Bay
2x 5.25″ CD-ROM & 1x 3.5″ FDD & 5x 3.5″ HDD & 1x 3.5″ HDD (Optional)
Expansion Slots
7
Cooling
2x (90mm = 51.0CFM ea.) Fans &
2x (60mm = 23.5CFM ea.) Fans (Optional)
Front I/O
2x USB (Optional) Ports
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
Power Supply
PS/2 Size Single up to 700W or Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 220mm
Operating Temp.
Humidity
5% – 95% Non-condensing
Weight (Net, Gross)
17.8 kgs / 39.3 lbs
*規格如有變更，恕不另行通知。
