- Intel® Core™ i5-9500 處理器 (9M 快取記憶體,最高可達 4.40 GHz)
- Intel® C246
- Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro - Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
- 1 HDMI port, 1 DVI – D port, 1 DP (DisplayPort) port,
Intel UHD P630 graphic(For CPU Xeon E-21XXG/ E-22XXG series only) - Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
System
CPU
Intel® Core™ i5-9500 Processor
(9M Cache, up to 4.40 GHz)
Chipset
Intel® C246
System Memory
DDRV 2400 UDIMM 16G
BIOS
128MB UEFI
Graphic
Intel UHD P630 graphic(For CPU Xeon E-21XXG/ E-22XXG series only)
Expansion Slot
1 PCI-E 3.0 x4,1 PCI-E 3.0 x1,2 PCI-Ex16 slots are running at NA/16, or 8/8
1 – 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
Mini Type Slot
N/A
Power type
500W industrial power supply

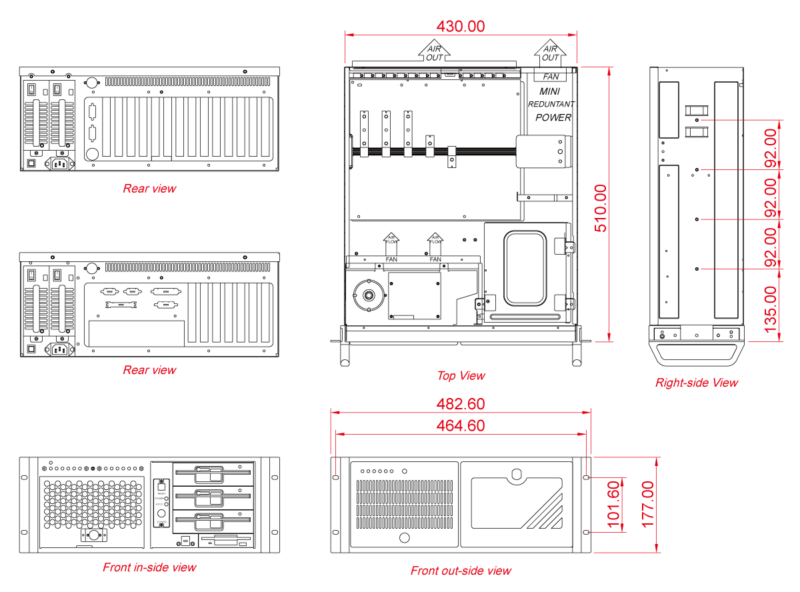

Dimension
483 x 177 x 510mm
I/O Interface
Display
1 HDMI port, 1 DVI – D port, 1 DP (DisplayPort) port,
Intel UHD P630 graphic(For CPU Xeon E-21XXG/ E-22XXG series only)
Storage
HDD 3.5″/ 1TB/ 7200 轉/ 128MB/ enterprise
Ethernet
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro
Audio
ALC 888S HD Audio
USB
4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
2 USB 2.0 port(s) (2 via header)
Internal USB Port
1 USB 3.0
Serial
1 COM Port (1 header)
PS/2 Port
N/A
TPM
1 TPM Header
SMBus
Digital I/O
*規格如有變更,恕不另行通知。
