AOI高擴充控制型工業伺服器

  • Intel® Xeon® 處理器 E5-1650 v4 (15M 快取記憶體,3.60 GHz)
  • Intel® C612 chipset
  • Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots
  • 4 PCI-E 3.0 16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 1 (in x4)
  • Intel® i210-AT Dual port GbE LAN
  • 10 SATA3 (6Gbps)
  • 1 COM, 1 TPM
  • 8 USB 3.0 ports (6 rear + 2 via header)
  • HD Audio 7.1 channel connector by Realtek ALC1150

I/O

Intel® Xeon® 處理器 E5-1650 v4

Specification

System

CPU

Intel® Xeon® 處理器 E5-1650 v4
(15M 快取記憶體,3.60 GHz)

Chipset

Intel® C612

System Memory

DDRV 2400 RDIMM 16G

BIOS

128Mb SPI Flash EEPROM with AMI BIOS

Graphic

Expansion Slot

4 PCI-E 3.0 x16

2 PCI-E 2.0 x1 (in x4 slot),

4 PCI-E Gen3x16 slots are running at 16/16/NA/8 or 16/8/8/8

PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed)

PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed)

Mini Type Slot

N/A

Power type

500W industrial power supply

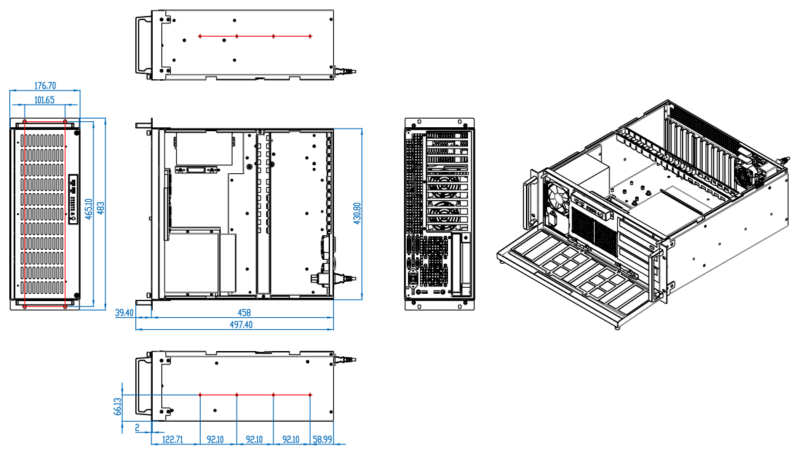

Dimension

483mm x 459.2mm x 176.8mm

I/O Interface

Display

1 VGA port

Storage

HDD 3.5″/ 1TB/ 7200 轉/ 128MB/ enterprise

Ethernet

Dual LAN with Intel® i210 Gigabit Ethernet Controller

Audio

ALC 1150 HD Audio

USB

8 USB 3.0 ports (6 rear + 2 via headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)

Internal USB Port

N/A

Serial

1 COM Port (1 header)

PS/2 Port

1 x PS/2 combo

TPM

TPM Header

SMBus

Digital I/O

*規格如有變更,恕不另行通知。
