- Intel® Core™ i7-4790 處理器 (8 MB 快取記憶體，最高 4.00 GHz)
- Intel® Q87 Express Chipset
- Up to 16GB DDR3 non-ECC 1600MHz UDIMM in 2 sockets
- Intel Processor Graphics with Display Port, HDMI and DVI-I,
3 independent displays - Dual Gigabit Ethernet LAN ports
- 4 SATA3 (6Gbps)
- HD Audio Front Panel headers
I/O
Intel® Core™ i7-4790 處理器
System
CPU
Intel® Core™ i7-4790 處理器
(8 MB 快取記憶體，最高 4.00 GHz)
Chipset
Intel® Q87 Express
System Memory
DDRIII 1600 SO-DIMM 8G
BIOS
128Mb SPI Flash EEPROM with AMI BIOS
Graphic
Intel® HD 4600 Graphics
3 Independent Displays
Expansion Slot
1 PCI-E 3.0 x16
Mini-PCIE with mSATA support
Mini Type Slot
N/A
Power type
250W industrial power supply

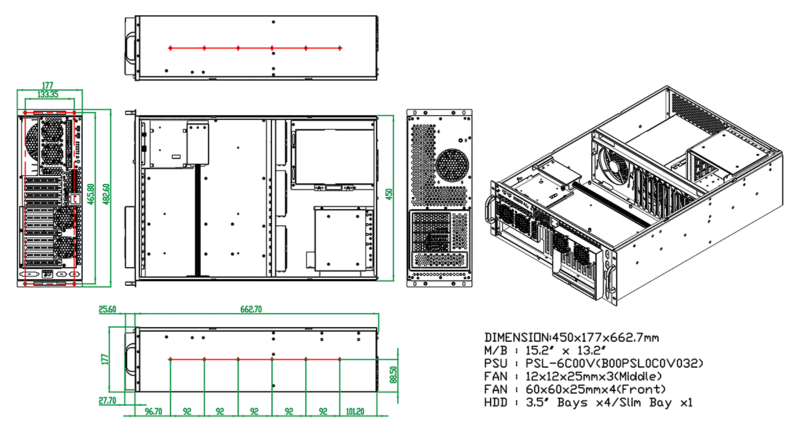

Dimension
450 x 177 x 662.7mm
I/O Interface
Display
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI – I port,
3 Independent Displays
Storage
HDD 3.5″/ 1TB/ 7200 轉/ 128MB/ enterprise
Ethernet
Single LAN with Intel® Ethernet Connection I217-V
Single LAN with Intel® Ethernet Controller I210-AT
Audio
ALC 888S HD Audio
USB
5 USB 2.0 ports (2 rear + 2 headers + 1 Type A)
2 USB 3.0 ports (2 rear)
Internal USB Port
N/A
Serial
5 COM Ports (2 rear, 3 headers), 1 RS232/ 422/ 485, 4 RS232
5 fast UART 16550 serial
PS/2 Port
N/A
TPM
1 TPM Header
SMBus
Digital I/O
*規格如有變更，恕不另行通知。
