AOI/AI/GPU工業伺服器

  • Intel® Xeon® Silver 4210 處理器 (13.75M 快取記憶體,2.20 GHz)
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
  • Intel® C621
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
    Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode
    (Cascade Lake only).
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
  • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 5 USB 3.0 ports, 4 USB 2.0 ports
  • HD Audio with optical S/PDIF

I/O

Intel® Xeon® Silver 4210 處理器

Specification

System

CPU

Intel® Xeon® Silver 4210 處理器
(13.75M 快取記憶體,2.20 GHz)

Chipset

Intel® C621

System Memory

DDRV 2400 RDIMM 32G

BIOS

32MB SPI AMI BIOS® SM Flash UEFI BIOS

Graphic

Aspeed AST2500 BMC

Expansion Slot

6 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)

M.2 Interface: PCI-E 3.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-Key

Mini Type Slot

N/A

Power type

1200W industrial power supply

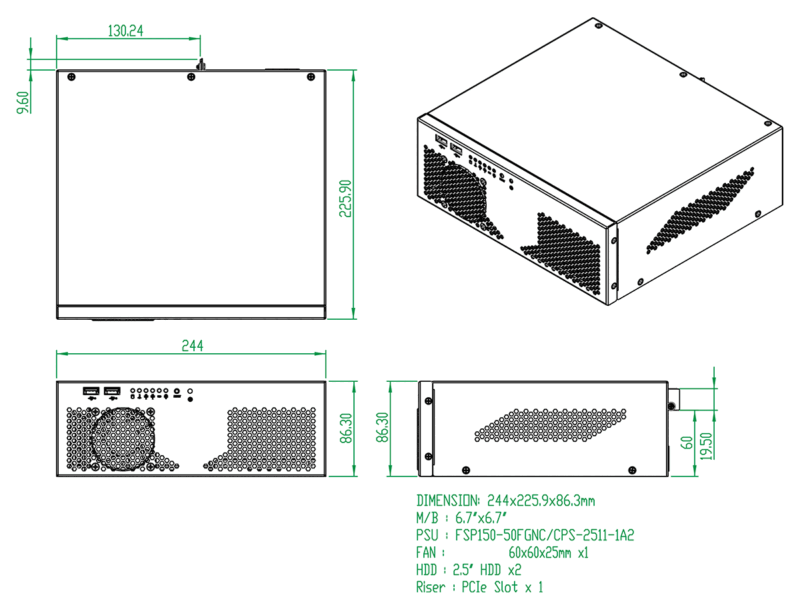

Dimension

244 x 225.9 x 86.3mm

I/O Interface

Display

1 VGA D-Sub Connector port

Storage

HDD 3.5″/ 1TB/ 7200 轉 / 128MB/ enterprise

Ethernet

Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Audio

7.1 HD Audio Header

USB

4 USB 2.0 port(s) (2 rear; 2 via header)

3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)

2 USB 3.0 port(s) (2 rear)

Internal USB Port

1 USB 3.0

Serial

2 COM Port(s) (1 header; 1 rear)

PS/2 Port

N/A

TPM

1 TPM Header

SMBus

Digital I/O

*規格如有變更,恕不另行通知。
