WI-IMB-1715

ATX Motherboard
  • Intel® Core™ Ultra processors (Arrow Lake-S) with Q870 chipset
  • 4 x 288-pin CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz, up to 256GB (64GB per DIMM)
  • 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4), 2 x PCIe x1 (Gen4)
  • 2 x USB4/Thunderbolt™4, 6 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x USB2.0
  • 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 4 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1 TMDS, 2 x DP 2.1 (2 from Type-C), 1 x DP 1.4a
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1/5/10
  • ATX PWR (8+8+24 Pin)
Download

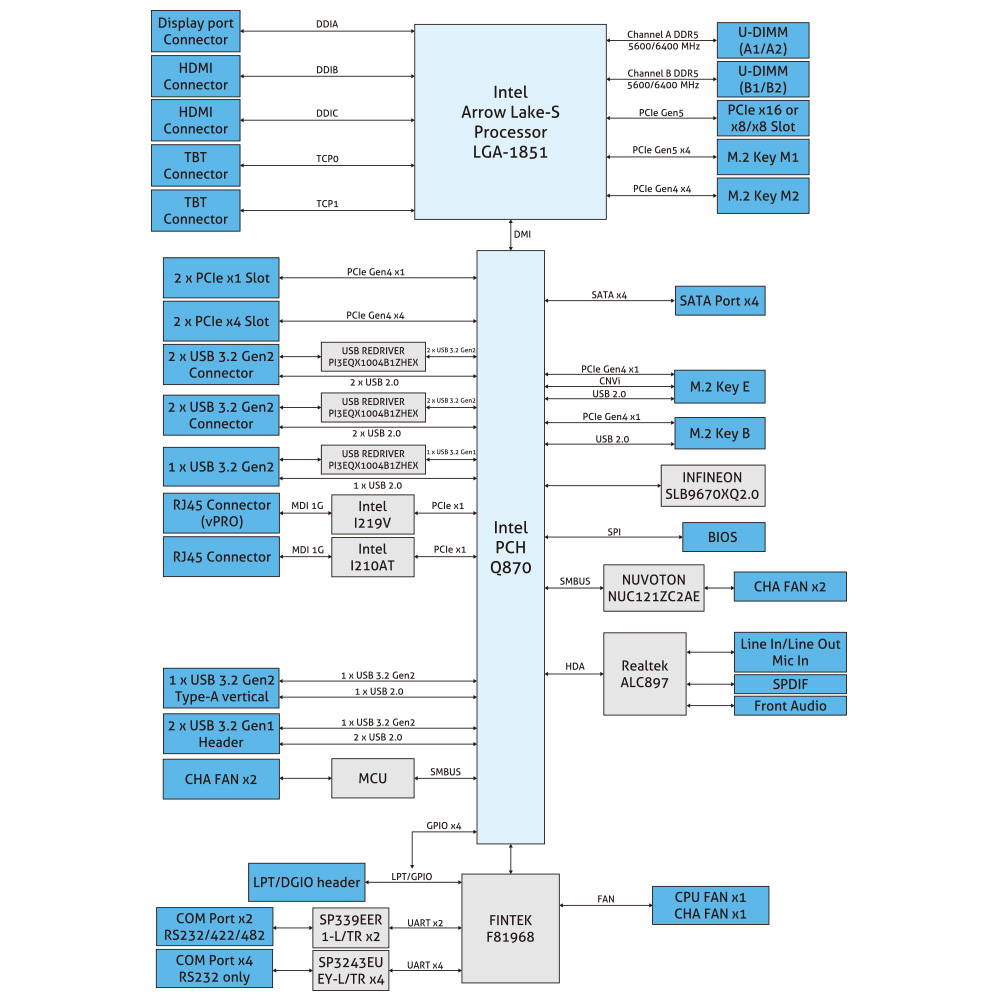

Block Diagram
Specification
System
CPU
Intel® Core™ processors (Arrow Lake-S), up to 125W; Socket LGA 1851
Chipset
Intel® Q870
System Memory
4 x 288-pin CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz, up to 256GB (64GB per DIMM)
BIOS
AMI SPI 256 Mbit
Graphic

Intel® Xe LPG Graphics

–

HDMI 2.1 TMDS
(Max resolution up to 7680×4320@60Hz)

–

DisplayPort 2.1/1.4a, DP++
(Max resolution up to 4096×2160@60Hz)

–

Quad display (Included 2 output from Type-C)

Expansion Slot

2 x PCIe Gen5 Slots (PCIE1/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE5)) (PCIE1: Support Riser card x8/x8)

2 x PCIe x4 (Gen4)

2 x PCIe x1 (Gen4)

–

1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless

1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 2.0

Form Factor
ATX
Dimension
12″ x 9.6″ x 1.81″ (30.5 cm x 24.4 cmx 4.61 cm)
I/O Interface
Display
2 HDMI 2.1 TMDS, 1 DP 1.4a
Storage

1 x M.2 (Key M, 2242/2280/22110/25110) with PCIe Gen5 x4 for SSD

1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD

–

4 x SATA3 (6Gb/s)

–

Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M
SATA interface: SATA port

Ethernet

LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro

LAN2: Intel® I210AT with 10/100/1000 Mbps

Audio
Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in
USB

5 x USB 3.2 Gen2 (5 rear)

1 x USB 3.2 Gen2 vertical Con

2 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) (1 rear+ 1 header)

2 x USB 3.2 Gen1 (1 x USB 3.2 header)

2 x USB2.0 (1 x USB2 header)

Internal USB Port

1 USB 3.0

Serial

COM1, COM2 (RS-232/422/485) (2 rear)

COM3 (RS-232/TTL 5V/ccTalk, switch by Jumper setting)

COM4, COM5, COM6 (RS-232)

PS/2 Port
N/A
TPM
TPM 2.0 onboard IC
*規格如有變更，恕不另行通知。
