1200 Watt ATX Power Supply / 80 Plus Gold rating
- Intel® ATX 3.0 compliant
- High-efficiency 80 Plus Gold rating
- Modular design for cable
- Supports OVP, OCP, SCP & OTP circuit protection
- Operating temperature: 0 ~ 50°C @ 100%
- Safety :UL(62368-1)/ CB/ TUV/ CCC/ KC/ BSMI/ UKCA
- EMC : CE / FCC
- Depth dimension : 160mm
- 12VHPWR connector for high-end graphic card
Specification
Specification
Wattage
1200 W
Input Rang
100-240 VAC, 47-63 Hz
Output Voltage
+3.3V
+5V
+12V
– 12V
+5Vsb
Max Load
20A
20A
100A
0.3A
3.0A
Max Output
110W
110W
1200W
3.6W
15W
MTBF
700K (Hours) @ 25°C

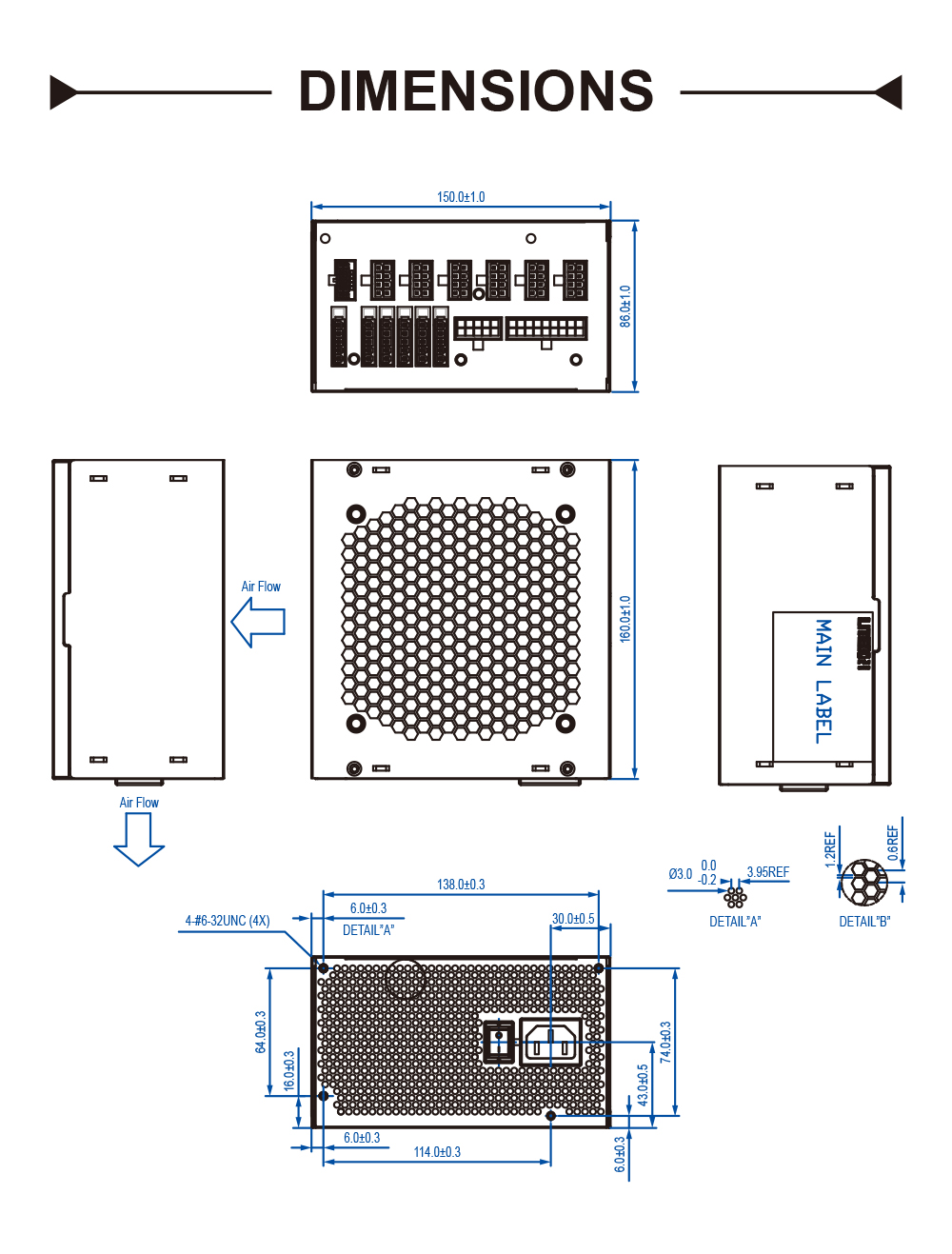

Dimension (mm)
D160 x W150 x H86
Safety / EMC
UL/ CSA/ CB/ TUV/ CCC/ BSMI/ KC, CE/ FCC
PFC
Active PFC
Efficiency
80 PLUS® Gold
Protection
Supports OVP, OCP, SCP & OTP circuit protection
Form Factor
ATXPS2
Weight
2.6 kg (including cables)
*規格如有變更，恕不另行通知。
