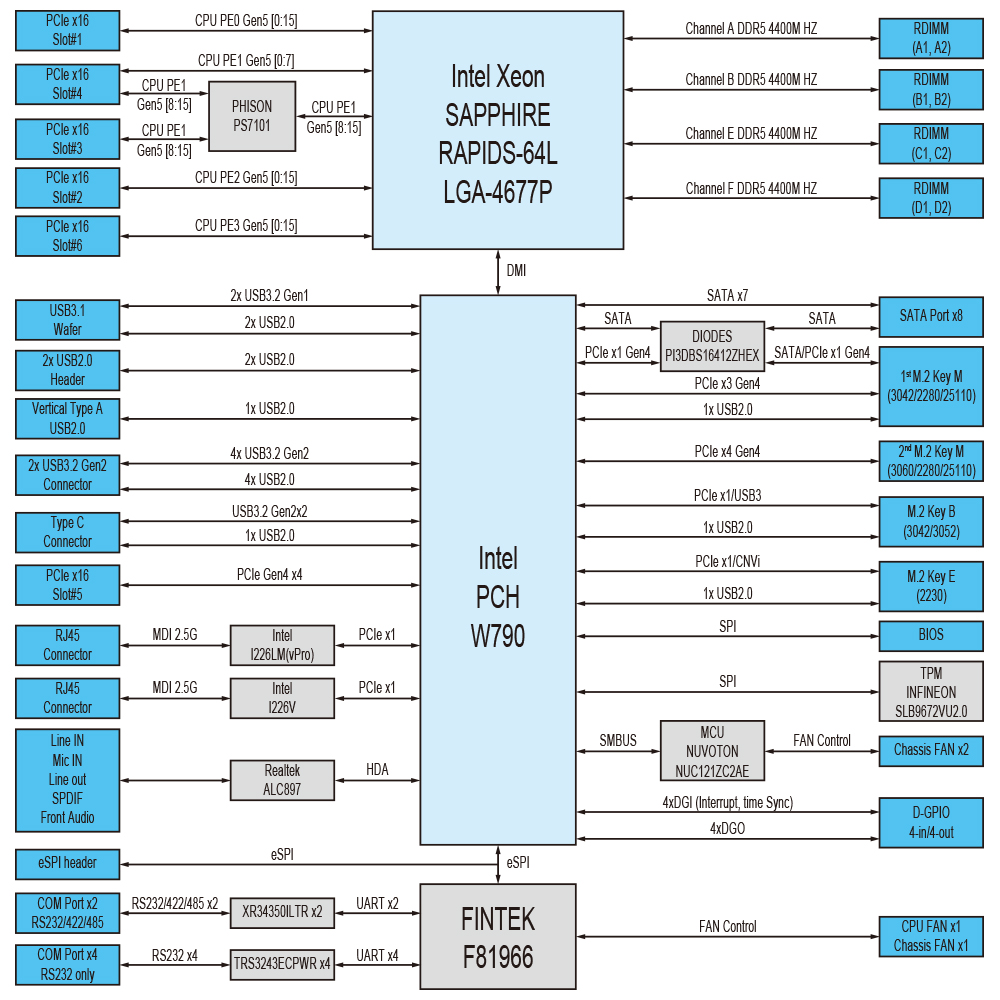

- Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 4400/4800 MHz, up to 2TB
- 1 x PCIe x16 (Gen5), 3 x PCIe x16 (Gen4),
1 x PCIe x8 (Gen4), 1 x PCIe x4 (Gen4), - 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2,
2 x USB 3.2 Gen1, 3 x USB 2.0, - 1 x M.2 Key E,
2 x M.2 Key M,
1 x M.2 Key B,
6 x COM, 8 x SATA3 - 2 x Intel 2.5 Gigabit LAN
- TPM 2.0 onboard IC
- Support Intel® vPro, VMD RAID 0/1/5/10
- ATX PWR (8+8+24 Pin)
PCIE1: PCIe Gen5 x16
PCIE2: PCIe Gen4 x16
PCIE3/PCIE4: single at Gen4 x16 (PCIE4); dual at Gen4 x8 (PCIE3) / x8 (PCIE4)
PCIE5: PCIe Gen4 x4
PCIE6: PCIe Gen4 x16
–
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
–
1 x SIM socket connected to M.2 key B
1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 and SATA3 for SSD
1 x M.2 (Key M, 2260/2280/25110) with PCIe Gen3 x4 for SSD
8 x SATA3, SATA3_0 shared with M.2 K ey M1
Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
2 x USB 2.0 (1 x 2.54 pitch header)
1 x USB 2.0 (vertical con)
COM3, COM4 (RS-232)
COM1, COM2 (RS-232/422/485)
COM5, COM6 (RS-232)
