4U Chassis Support for max. Motherboard Size – 12″ x 13″ EATX
- Supports EATX motherboard
- Supports Internal 4 x 3.5″ HDD bays or
3 x 3.5″ HDD bays and 1 x FDD - 1 x Slim CD-ROM
- Supports PS/2 type power supply
Specification
Specification
System Board
Support EATX MB

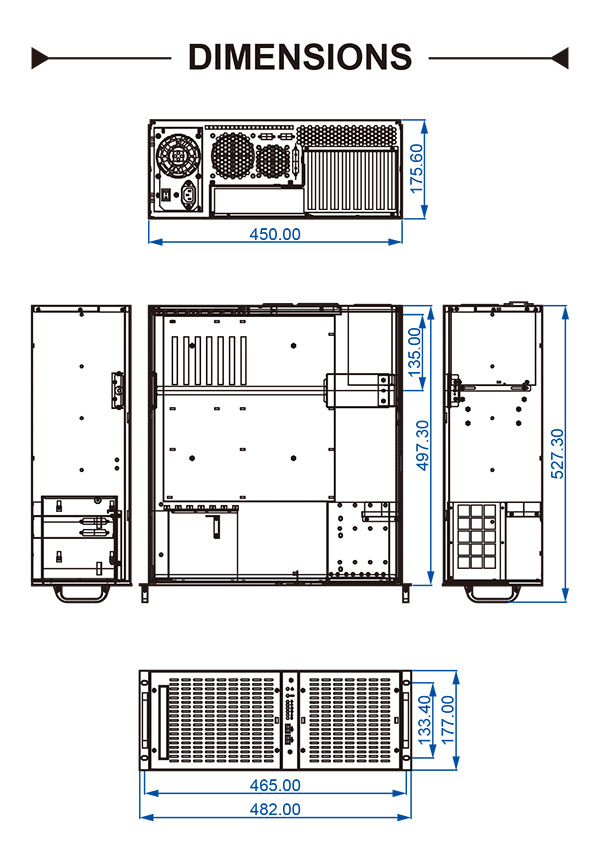

Dimension (W x D x H)
482 x 497 x 177 mm
Drive Bay
4 x Internal 3.5″ HDD or
3 x Internal 3.5″ HDD and 1 x FDD
1 x Slim CD ROM
Expansion Slots
8
Cooling
2 x 92 x 25mm fans (front)
1 x 80 x 25mm fan (rear)
2 x 60 x 25mm fans (cage below)
Front I/O
2 x USB Ports
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
2 x Network activity LEDs
Power Supply
PS/2 Size
Operating Temp.
0°C ~ 50°C
Humidity
5% ~ 95% non-condensing
Weight (Net, Gross)
*規格如有變更，恕不另行通知。
Optional Items
YH-5PCI-M
- Supports PCI-E to PCI slot 5 ports
- Input : For x1 to x16 slot adapter,compatible with 1x,4x,8x,16x slot
- Output : 5 x 5V PCI 32bit
- Power :4P Power Connector
4P FDD Second Power Connector - Link : Two SATA connector
- Dimension (L x W x D) :YH-5PCI-M: 101 x 177 x 17mm
YH-5PCI-R: 85 x 45 x18 mm - Weight :YH-5PCI-M: 155g
YH-5PCI-R: 31g (on Full High Slot MB)
