WI-IMB-X1714

ATX Motherboard
  • Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
  • 4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400 MHz , up to 192GB
    (48GB per DIMM)
  • 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen3)
  • 1 x USB 3.2 Gen2x2 Type-C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
  • 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 8 x SATA3
  • 3 x Intel 2.5 Gigabit LAN
  • Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1/5/10
  • ATX PWR (8+24 Pin)
Download

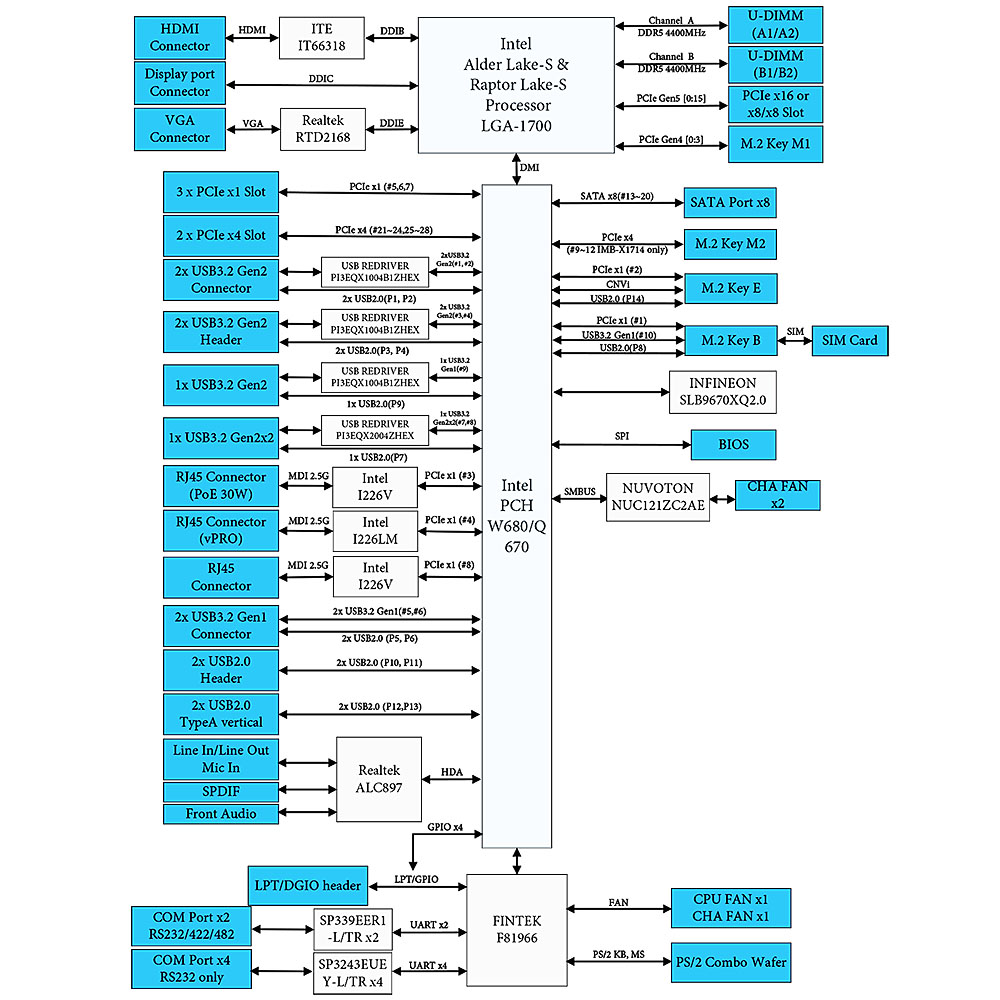

Block Diagram
Specification
System
CPU
Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W; Socket LGA1700
Chipset
Intel® W680
System Memory
4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400 MHz , up to 192GB (48GB per DIMM)
BIOS
AMI SPI 256 Mbit
Graphic

Intel® UHD Graphics

HDMI 2.0b
(Max resolution up to 4096 x 2160@60Hz)

DisplayPort 1.4a, DP++
(Max resolution up to 4096 x 2160@60Hz)

VGA
(Max resolution up to 1920 x 1200@60Hz)

Triple Display

Expansion Slot

2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8)

2 x PCIe x4 (Gen4)

3 x PCIe x1 (Gen3)

–

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G

–

1 x SIM socket connected to M.2 Key B

Form Factor
ATX
Dimension
12″ x 9.6″ x 1.4″ (30.5 cm x 24.4 cm x 3.6 cm)
I/O Interface
Display
1 HDMI 2.0b, 1 DP 1.4a, 1 VGA
Storage

1 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen4 x4 for SSD

1 x M.2 (Key M, 2242/2260/2280/22110/25110) with PCIe Gen3 x4 for SSD

8 x SATA3 (6Gb/s)

Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port

Ethernet

LAN1: Intel® I226V with 10/100/1000/2500 Mbps, supports PoE

LAN2: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro

LAN3: Intel® I226V with 10/100/1000/2500 Mbps

Audio
Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in
USB

5 x USB 3.2 Gen2 (5 rear)

1 x USB 3.2 Gen2x2 (Type-C, 5V/3A) (1 rear)

2 x USB 3.2 Gen1 (1 x USB 3.2 header)

4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)

Internal USB Port
N/A
Serial

COM1, COM2 (RS-232/422/485) (2 rear)

COM3, COM4, COM5, COM6 (RS-232) (4 header)

PS/2 Port
N/A
TPM
TPM 2.0 onboard IC
