2U Black ATX Ultra Cool Server Chassis
- Support patented 3 slot full high risers or 7 slot Low Profile cards (max. 250mm long)
- Support PS2 power supply with 80mm fan version (max. psu depth: 160mm)
- It is equipped with 4 sets of 8cm fans and 8 sets of disk drive space, which is suitable for high-speed computing server or workstation system environment.
Specification
Specification
System Board
ATX, MicroATX, Mini-ITX motherboard
Mounting
2U Rackmount

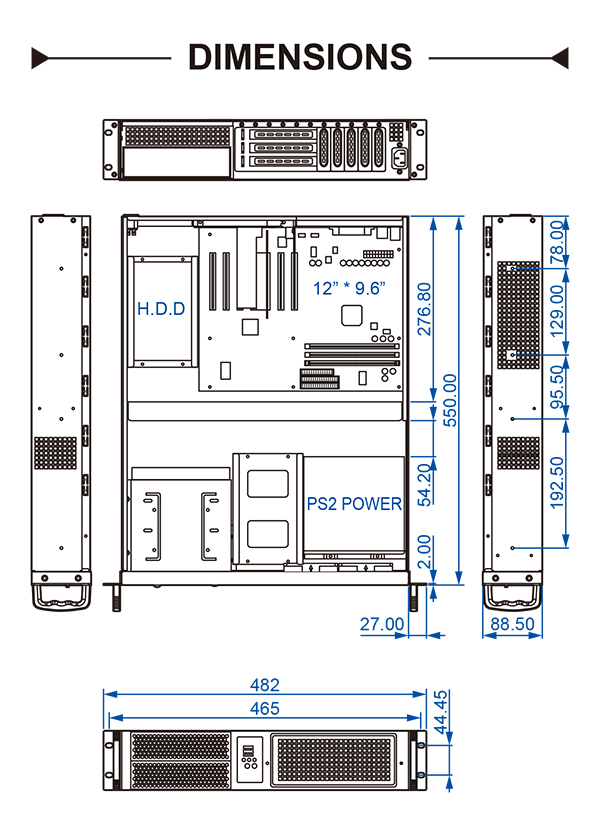

Dimension (W x D x H)
482 x 550 x 88 mm
Construction
The main sheet metal constructed by
1.2mm~2.0mm SGCC mechanism
Standard Color
Scratch-resistant black textured at front
Drive Bay
2 x 5.25″ ODD and 6 x 3.5″ HDD bay
Expansion Slots
Support patented 3 slot full high risers
or 7 slot Low Profile cards
(max. 250mm long)
Cooling
Four 80 x 25mm intake 2-ball bearing fans
Front I/O
2 x USB2.0 ports (Option : 2 x USB3.0)
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
1 x LAN LED
Power Supply
PS/2 type
Operating Temp.
Humidity
Carton Size
685 x 565 x 180 mm
Weight (Net, Gross)
8 kg, 10 kg
*規格如有變更，恕不另行通知。
