4U Rackmount Chassis for ATX Motherboard, Supporting 3x 5.25″ & 1x 3.5″ Drive Bays
- Supports ATX motherboard
- External 3x 5.25″ & 1x 3.5″ drive bays
- 2x (92mm = 51.0CFM ea.) Hot Swap Fans
- Supports PS/2 type power supply
- Flexible Hold Down Bar Designed
- EIA RS-310C 19″ Rackmount Standard
- Front Door: Drive Panel Door With Keylock
Specification
Specification
System Board
ATX MB

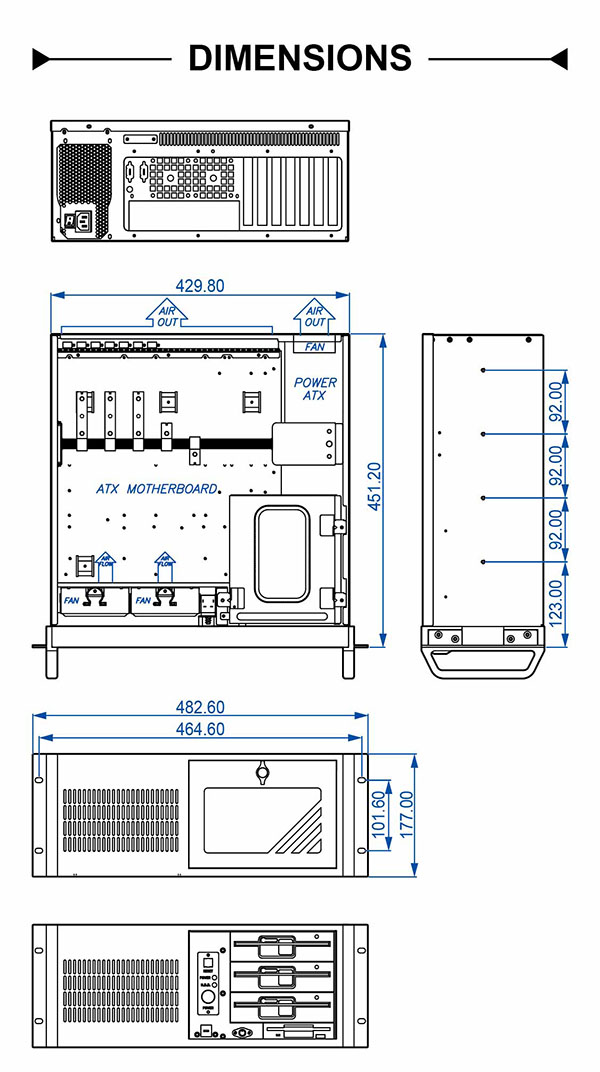

Dimension (W x D x H)
483 x 451 x 177mm
Drive Bay
3x 5.25″ CD-ROM & 1x 3.5″ FDD
Expansion Slots
7
Cooling
2x (92mm = 51.0CFM ea.) Hot Swap Fans
Front I/O
2x USB (Optional) Ports
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
Power Supply
PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
Operating Temp.
Humidity
5% ~ 95% non-condensing
Weight (Net, Gross)
16.5 kgs / 36.4 lbs
*規格如有變更,恕不另行通知。
