2U Rackmount Chassis for ATX / mATX Motherboard, Supporting Riser Card
- Supports ATX / mATX motherboard
- External 2 x 5.25″ drive bays & Internal 2 x 3.5″ HDD bays
- Two 60mm inside fan & one 80mm rear fan
- Supports PS/2 type power supply
- Air filter
- Option: 5.25″ drive bay (1 x Slim ODD & 1 x 3.5″ drive bay)
Specification
Specification
System Board
ATX / mATX motherboard
Mounting
2U Rackmount

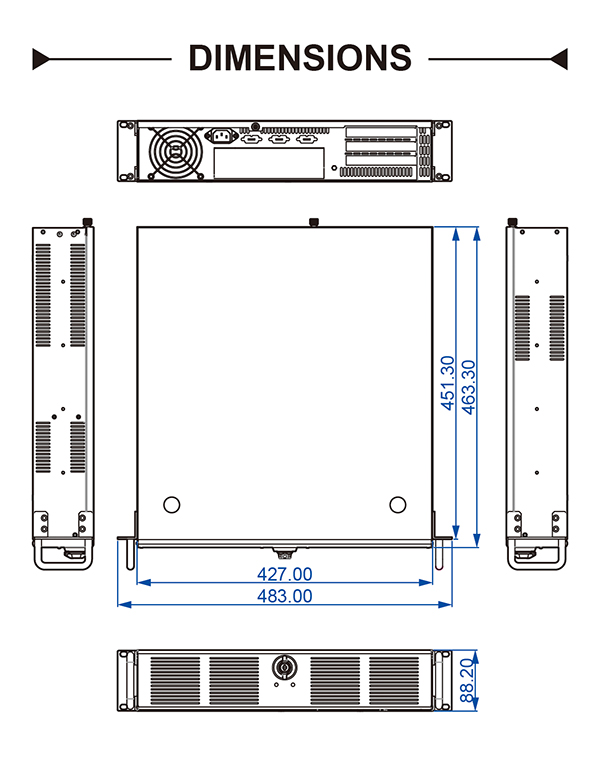

Dimension (W x D x H)
427 x 450 x 88 mm
Construction
Heavy-duty Steel
Standard Color
Black (Option: Beige)
Drive Bay
External : 2 x 5.25″
Internal : 2 x 3.5″ HDD
Expansion Slots
3
I/O Openings
3 x DB9
Cooling
Rear : 1 x 80 mm fan
Inside : 2 x 60 mm fan
Air Filter
Yes
Internal USB ports
N/A
Front I/O
2 x USB2.0 ports (Option : 2 x USB3.0)
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
Power Supply
PS/2 type
Operating Temp.
0°C ~ 50°C
Humidity
5% ~ 95% non-condensing
Carton Size
575 x 545 x 220 mm
Weight (Net, Gross)
8.4 kg, 9.8 kg
*規格如有變更，恕不另行通知。
