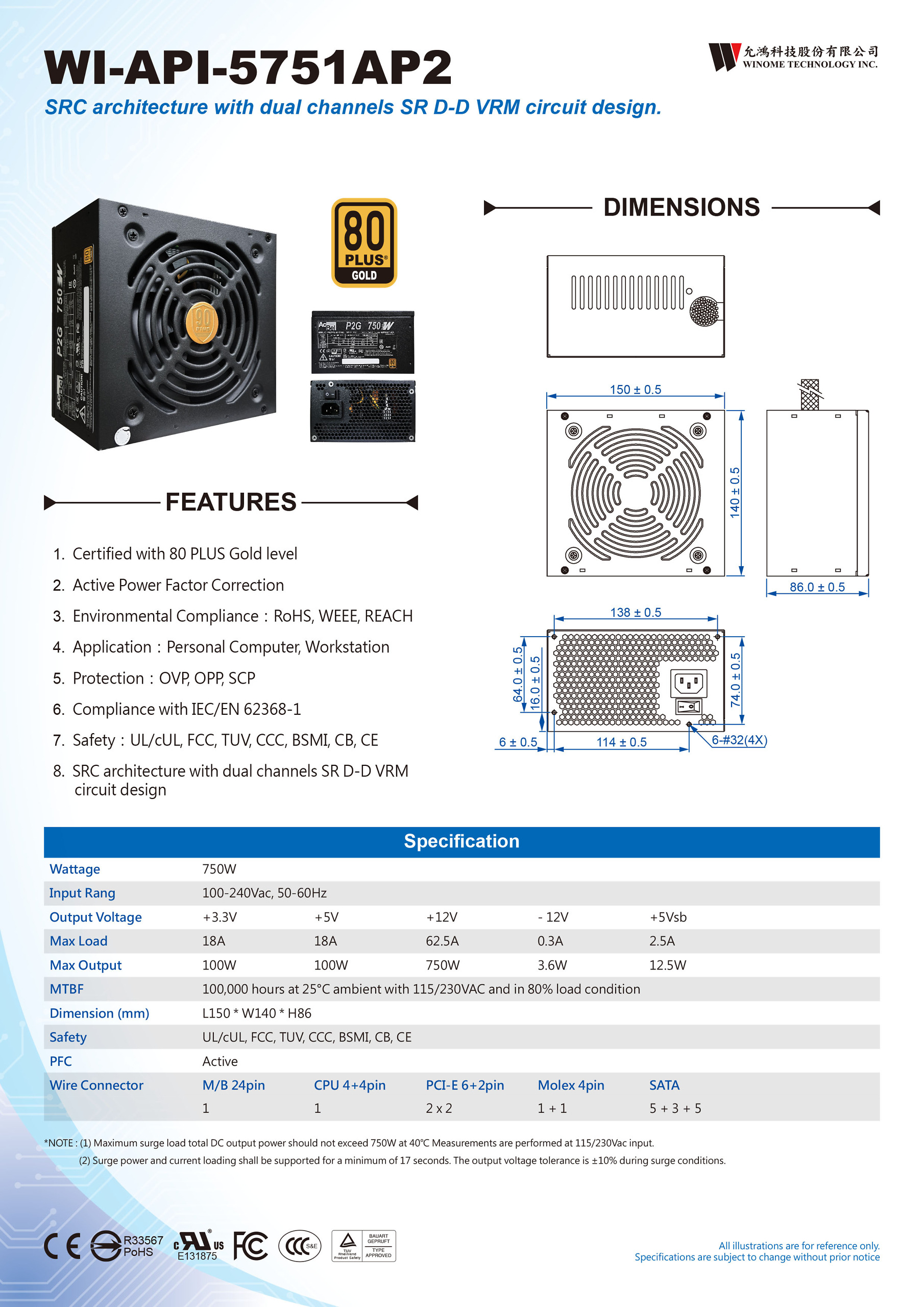

SRC architecture with dual channels SR D-D VRM circuit design.
- Certified with 80 PLUS Gold level
- Active Power Factor Correction
- Environmental Compliance：RoHS, WEEE, REACH
- Application：Personal Computer, Workstation
- Protection：OVP, OPP, SCP
- Compliance with IEC/EN 62368-1
- Safety：UL/cUL, FCC, TUV, CCC, BSMI, CB, CE
- SRC architecture with dual channels SR D-D VRM circuit design
Specification
Specification
Wattage
750W
Input Rang
100-240Vac, 50-60Hz
Output Voltage
+3.3V
+5V
+12V
– 12V
+5Vsb
Max Load
18A
18A
62.5A
0.3A
2.5A
Max Output
100W
100W
750W
3.6W
12.5W
MTBF
100,000 hours at 25°C ambient with 115/230VAC and in 80% load condition
Dimension (mm)
L150 * W140 * H86
Safety
UL/cUL, FCC, TUV, CCC, BSMI, CB, CE
PFC
Active
Wire Connector
- M/B 24pin x 1
- CPU 4+4pin x 1
- PCI-E 6+2pin 2 x 2
- Molex 4pin 1 + 1
- SATA 5 + 3 + 5
*NOTE :
- Maximum surge load total DC output power should not exceed 750W at 40℃ Measurements are performed at 115/230Vac input.
- Surge power and current loading shall be supported for a minimum of 17 seconds. The output voltage tolerance is ±10% during surge conditions.
*規格如有變更，恕不另行通知。
