Compact Chassis for ATX Motherboard
- Supports ATX/mATX motherboard
- Internal 2 x 2.5″HDD bay
- Two 92mm front fan
- Supports Flex ATX/1U type power supply
- Supports vertical & horizontal mounting
- Supports front mounting (option)
Specification
Specification
System Board
ATX MB
Mounting
Desktop or Wallmount

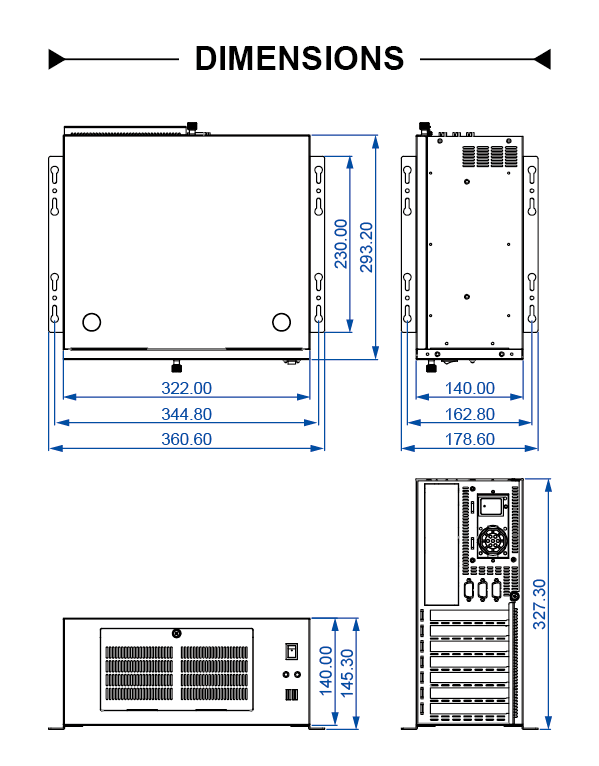

Dimension (W x D x H)
322 x 293 x 140 mm
Construction
Heavy-duty Steel
Standard Color
Black (Option: Beige, Silver)
Drive Bay
External: N/A
Internal: 2 x 2.5″ HDD
Expansion Slots
7
I/O Openings
3 x DB9
Cooling
Front: 2 x 92 mm Fan
Air Filter
Yes
Internal USB ports
Option
Front I/O
2 x USB2.0 ports (Option : USB3.0)
Front Controls
1 x Power on/off
Front Indicator
1 x Power LED
1 x HDD LED
Power Supply
Flex ATX / 1U type
Operating Temp.
0°C ~ 50°C
Humidity
5% ~ 95% non-condensing
Carton Size
420 x 415 x 250 mm
Weight (Net, Gross)
4.7 kg, 5.7 kg
*規格如有變更，恕不另行通知。
