WI-C7H61

Embedded
  • Intel® 2nd Generation Core™ i3 series, Intel® 2nd Generation Core™ i5 series, Intel® 2nd Generation Core™ i7 series, Intel® 3rd Generation Core™ i3 series, Intel® 3rd Generation Core™ i5 series, Intel® 3rd Generation Core™ i7 series, Intel® Celeron®, Intel® Pentium®v
    Single Socket LGA-1155 (Socket H2) supported, CPU TDP support Up to 95W TDP
  • Intel® H61 Express
  • 16GB Unbuffered non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots
  • 1 PCI-E 3.0 x16
    1 PCI-E 2.0 x1
    5 PCI (5 – 5V PCI 32bit)
  • 1 port, 1 port, 1 port, Processor Graphics
  • Intel® H61 Express controller for 4 SATA2 (3 Gbps) ports;
    ASM1061 controller for 2 SATA3 (6 Gbps) ports;
  • Single LAN with Intel® 82579V Gigabit Ethernet Controller
    Single LAN with Intel® 82574L Ethernet Controller

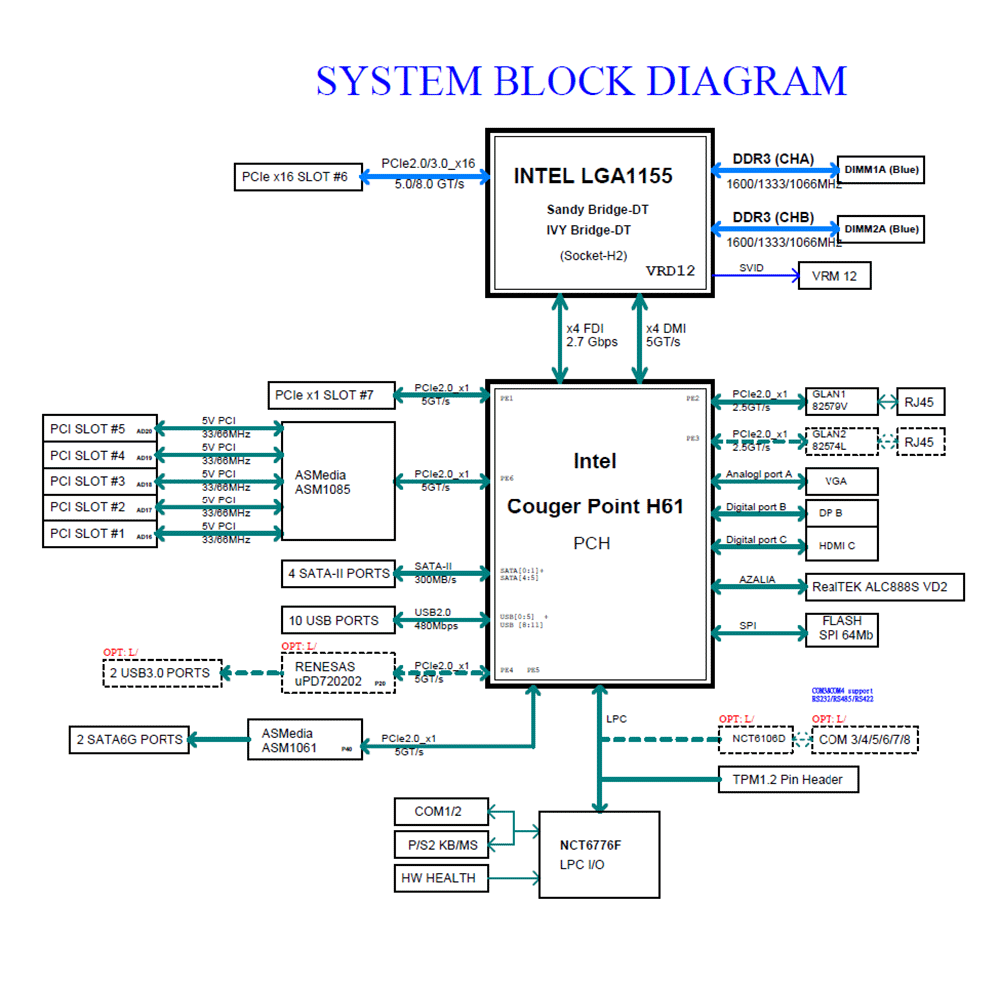

Specification
Product SKUs – Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
System
CPU

Intel® 2nd Generation Core™ i3 series,
Intel® 2nd Generation Core™ i5 series,
Intel® 2nd Generation Core™ i7 series,
Intel® 3rd Generation Core™ i3 series,
Intel® 3rd Generation Core™ i5 series,
Intel® 3rd Generation Core™ i7 series,
Intel® Celeron®, Intel® Pentium®v

Single Socket LGA-1155 (Socket H2) supported, CPU TDP support Up to 95W TDP

Chipset
Intel® H61 Express
System Memory
16GB Unbuffered non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots
BIOS
UEFI 64Mb
Graphic

Intel® HD 4000 Graphics
Processor Graphics

Expansion Slot

1 PCI-E 3.0 x16

1 PCI-E 2.0 x1

5 PCI (5 – 5V PCI 32bit)

Mini Type Slot
N/A
Power type
ATX Power connector
Dimension
ATX form factor (12.0″ x 9.6″)
I/O Interface
Display
1 VGA port, 1 DisplayPort port, 1 HDMI port, Processor Graphics
Storage

Intel® H61 Express controller for 4 SATA2 (3 Gbps) ports; ASM1061 controller for 2 SATA3 (6 Gbps) ports

Ethernet

Single LAN with Intel® 82579V Gigabit Ethernet Controller

Single LAN with Intel® 82574L Ethernet Controller

Audio
Five (5) Female Mini Jacks for High Definition Audio on the Back Panel
USB

10 USB 2.0 ports (6 rear + 4 via headers)

2 USB 3.2 Gen1 ports (2 via headers)

Internal USB Port
N/A
Serial
8 COM Ports (1 rear, 7 headers)
PS/2 Port
1 PS/2 combo
TPM
TPM Header
SMBus
Digital I/O
*規格如有變更,恕不另行通知。
