WI-X11SSA-F

  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • Expansion slots:
    1 PCIe 3.0 x 8 (in x16),
    1 PCIe 3.0 x 8,
    1 PCIe 3.0 x 4 (in x8)
    4 5V PCI 32-bit slots
  • M.2 NGFF connector
    M.2 Interface: PCIe 3.0 x4 and SATA
    Form Factor: 2242, 2260, 2280, 22110
    Key: M-Key
  • 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  • Dual GbE LAN with Intel® i210-AT
  • I/O: 1 VGA, 2 COM, TPM header
  • 2 SuperDOM with built-in power
  • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

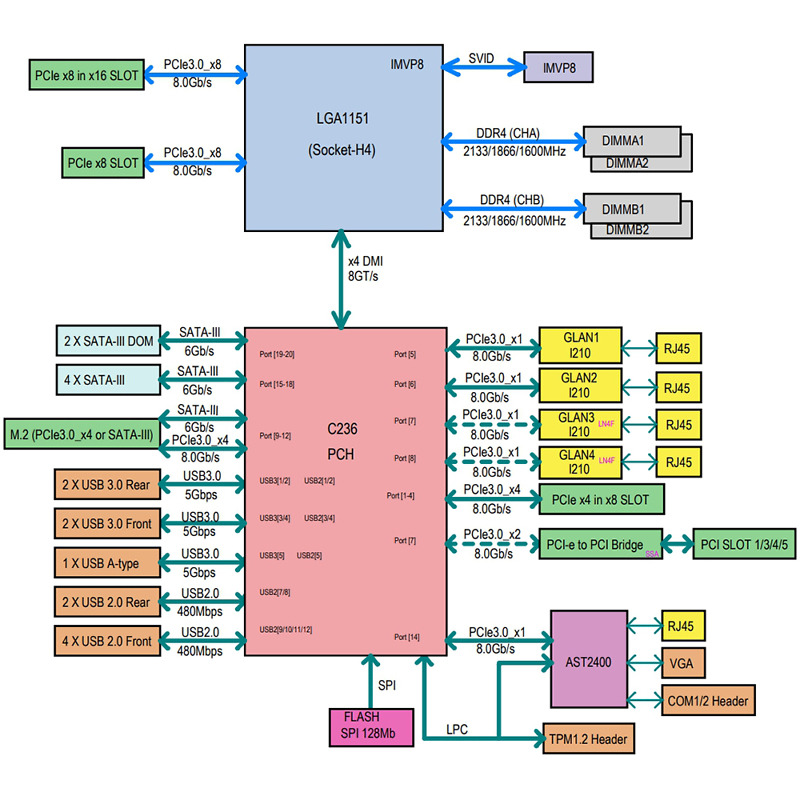

Specification
System
CPU

Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5

Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

Chipset
Intel® C236
System Memory

4 DIMM slots
64GB Unbuffered ECC UDIMM, DDR4-2400MHz

BIOS
128MB SPI Flash EEPROM with AMI BIOS
Graphic

1 ASPEED AST2400 BMC port(s)

Expansion Slot

1 PCIe 3.0 x 8,

1 PCIe 3.0 x 8 (in x16 slot),

1 PCIe 3.0 x 4 (in x8 slot)

4 – 5V PCI 32bit

M.2 Interface: PCIe 3.0 x4; SATA

Form Factor: 22110, 2280, 2242, 2260

Key: M-Key

Mini Type Slot
N/A
Power type
ATX
Dimension
12″ x 9.6″ (30.48cm x 24.38cm)
I/O Interface
Display
1 VGA port(s)
Storage
Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Ethernet
Dual LAN with Intel® Ethernet Controller I210-AT
Audio
N/A
USB

3 USB 3 port(s) (1 Type A; 2 via header)

6 USB 2.0 port(s) (4 via header; 2 rear)

2 USB 3.0 port(s) (2 rear)

Internal USB Port
1 USB 3.0
Serial
2 COM Port(s) (1 header; 1 rear)
PS/2 Port
N/A
TPM
1 TPM Header
SMBus
Digital I/O
*規格如有變更,恕不另行通知。
