Embedded
- Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family - Intel® C612
- Up to 1TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 8 DIMM slots
- 7 PCI-E slots total:
2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0 (auto-switch), & 1 PCI-E 2.0 x4 (in x8) - Intel® i210 Dual port GbE LAN
- 10 SATA3 (6Gbps) via C612
- 1 VGA, 2 COM, 1 TPM
- 4 USB 3.0 ports, 8 USB 2.0 ports
- 2 SuperDOM with built-in power

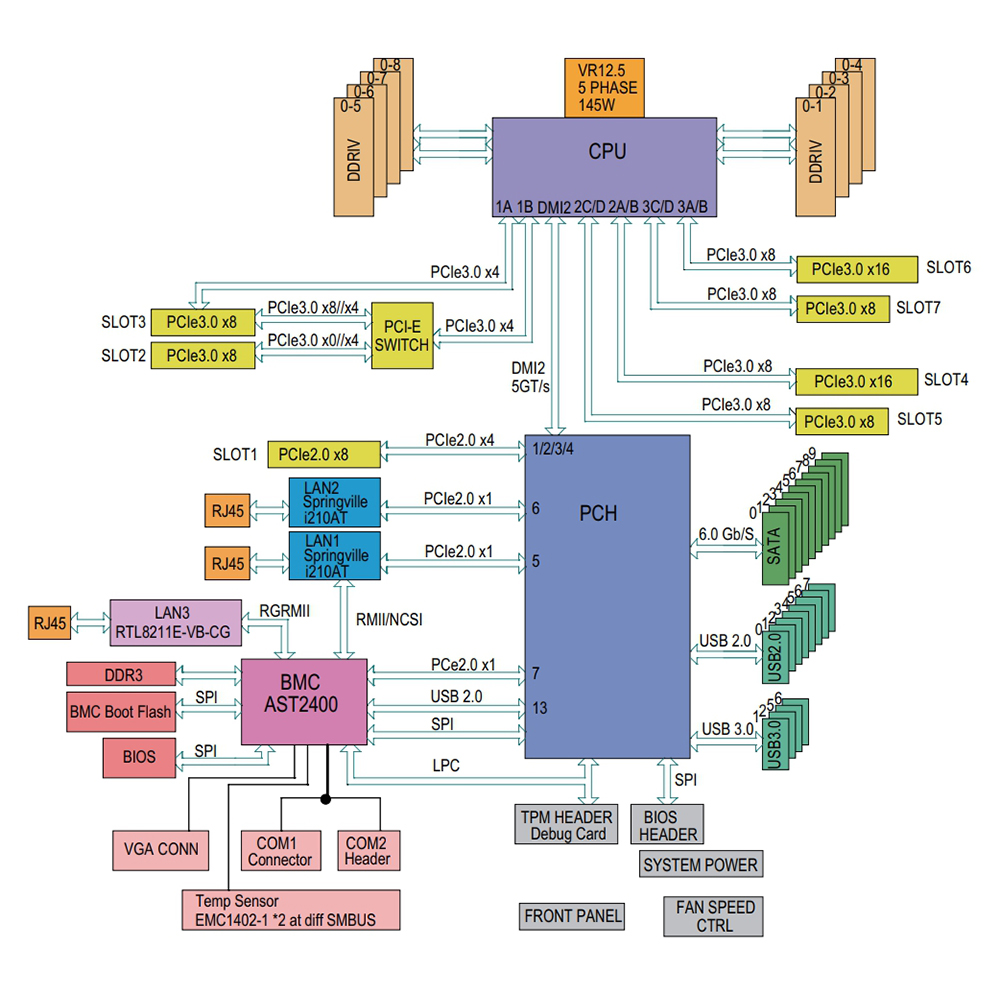

Specification
Product SKUs – Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
System
CPU
Intel® Xeon® Processor E5-1600 v3,
Intel® Xeon® Processor E5-1600 v4,
Intel® Xeon® processor E5-2600 v3,
Intel® Xeon® processor E5-2600 v4
Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
Chipset
Intel® C612
System Memory
Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM
BIOS
128Mb SPI Flash EEPROM with AMI BIOS
Graphic
ASPEED AST2400 BMC
Expansion Slot
2 PCI-E 3.0 x4 (in x8 slot) Auto-switch to 1 x8 and 1 x0,
2 PCI-E 3.0 x8,
2 PCI-E 3.0 x8 (in x16 slot)
1 PCI-E 2.0 x4 (in x8 slot)
Mini Type Slot
N/A
Power type
ATX
Dimension
12″ x 9.6″ (30.48cm x 24.38cm)
I/O Interface
Display
1 VGA port
Storage
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Ethernet
Dual LAN with Intel® Ethernet Controller I210Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
N/A
USB
8 USB 2.0 ports (2 rear + 6 via headers)
4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Internal USB Port
1 USB 3.0
Serial
2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
PS/2 Port
N/A
TPM
TPM Header
SMBus
Digital I/O
