WI-C9X299-PGF

Desktop Overclock
  • Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
  • Intel® X299
  • 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots
  • 4 PCIe 3.0 x 16,
    1 PCIe 3.0 x 1
    ***4xPCIe3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCIe3.0x1 slots***
    M.2 Interface: PCIe 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key (RAID 0,1 support)
    M-Key for SSD and Optane
    U.2 Interface: PCIe 3.0 x4
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108
  • 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 1 VGA port
Download

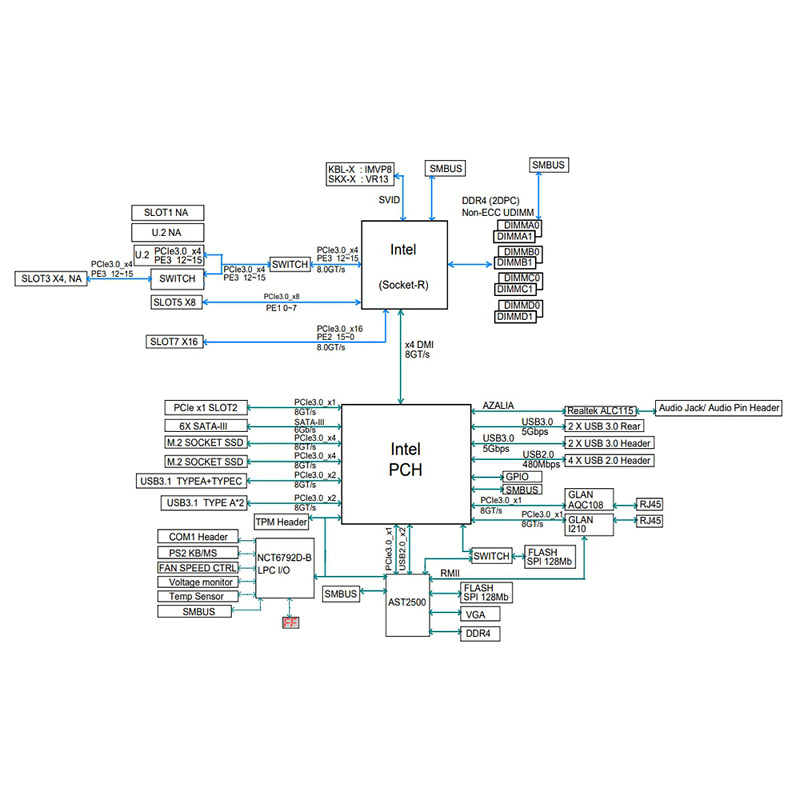

16 Lanes Block Diagram

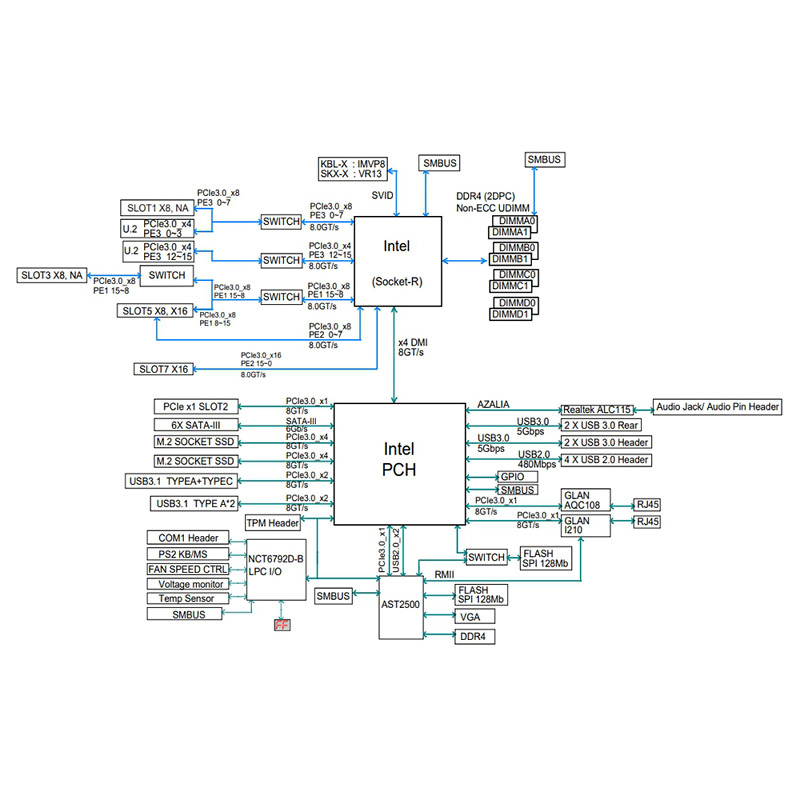

28 Lanes Block Diagram
44 Lanes Block Diagram
Specification
System
CPU

Intel® 7th Generation Core™ i7 X-series,
Intel® 9th Generation Core™ i7 X-series,
Intel® 9th Generation Core™ i9 X-series,
Intel® Core™ i9 Extreme X-series Processor,
Intel® 10th Generation Core™ i9 Extreme X-series

Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP

Support Intel Skylake-X refresh CPU

Chipset
Intel® X299
System Memory

8 DIMM slots
256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz

This platform doesn’t support DRAM Size 16Gb memory.

BIOS
128MB UEFI
Graphic
ASPEED AST2500
Expansion Slot

4 PCIe 3.0 x16,

1 PCIe 3.0 x1
***4xPCIe3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X),1xPCIe3.0x1 slots***

–

M.2 Interface: PCIe 3.0 x 4, RAID 0,1

Form Factor: 22110, 2280

Key: M-Key

M-Key for SSD and Optane

Form Factor
ATX
Dimension
12″ x 9.6″ (30.48cm x 24.38cm)
I/O Interface
Display
1 VGA port(s)
Storage
6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Ethernet

Single LAN with Intel® Ethernet Controller I210-AT

Single LAN with Aquantia 5G LAN chip AQC108

Audio
ALC 1220 HD Audio
USB

4 USB 2.0 port(s) (4 via header)

2 USB 3.2 Gen1 port(s) (2 via header)

4 USB 3.2 Gen2 port(s) (1 type C; 3 type A)

2 USB 3.0 port(s) (2 rear)

Internal USB Port
N/A
Serial
1 COM Port(s) (1 header)
PS/2 Port
1 x PS/2 combo
TPM
1 TPM Header
*規格如有變更，恕不另行通知。
