WI-X11SAE

Workstation
  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5/v6,
    Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • 2 PCIe 3.0 x16 (run at 16/NA or 8/8), 3 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
  • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
  • Single GbE LAN with Intel® i210-AT,
    Single GbE LAN with Intel® i219LM
  • 6 USB 3.0 (2 rear + 4 via header(s))
    8 USB 2.0 (2 rear + 6 via header(s))
    2 USB 3.1 (10Gbps, rear)
  • I/O: 2 COM, TPM header

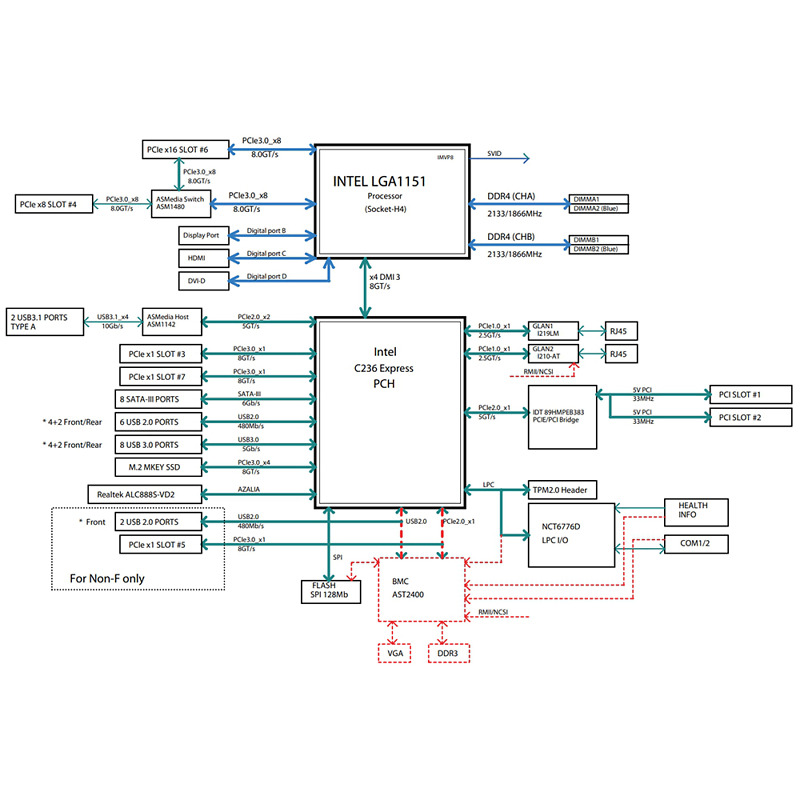

Specification
System
CPU

Intel® Xeon® processor E3-1200 v6/v5,
Intel® 6th/7th Generation Core™ i3 series,
Intel® 6th/7th Generation Core™ i5 series,
Intel® 6th/7th Generation Core™ i7 series

Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Chipset
Intel® C236
System Memory
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
BIOS
AMI UEFI
Graphic
Expansion Slot

2 PCIe 3.0 x 16,

3 PCIe 3.0 x 1,

***2 PCIe x16 slots are running at x16/NA or x8/x8 ***

2 PCI,

M.2 Interface: 1 PCIe 3.0 x4

Form Factor: 2242/2260/2280

Key: M-Key

Mini Type Slot
N/A
Power type
ATX
Dimension
12″ x 9.6″ (30.48cm x 24.38cm)
I/O Interface
Display
1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI – D port(s)
Storage

Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

+ 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)

Ethernet

Single LAN with Intel® PHY I219LM LAN controller

Single LAN with Intel® Ethernet Controller I210-AT

Audio
ALC 888S HD Audio
USB

8 USB 2.0 port(s) (2 rear; 6 via header)

6 USB 3.1 Gen1 port(s) (2 rear; 4 type A)

2 USB 3.1 Gen2 port(s) (2 type A)

2 USB 3.1 Gen 2 ports (2 Rear)

Internal USB Port
N/A
Serial
2 COM Ports (2 headers)
PS/2 Port
N/A
TPM
1 TPM Header
SMBus
Digital I/O
*規格如有變更,恕不另行通知。
