WI-X10SAE

Workstation Key Features

  • Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th/5th gen. Core i7/i5/i3 processors
  • Intel® C226 Express PCH
  • Up to 32GB DDR3 ECC/non-ECC 1600MHz UDIMM in 4 sockets
  • Dual Gigabit Ethernet LAN ports (1 Intel® i217LM & 1 Intel® i210AT)
  • 8 SATA3 (6Gbps) ports
  • 2 PCI-E 3.0 x16 slots – function as 16/NA or 8/8, 3 PCI-E 2.0 x1, and 2 PCI 5V 32-bit slots
  • 6 USB 3.0 (2 rear + 4 via headers)
    10 USB 2.0 (4 rear + 6 via headers)
  • HD Audio 7.1 channel connector by Realtek ALC1150
  • 1 DOM power connector and 1 SPDIF Out Header

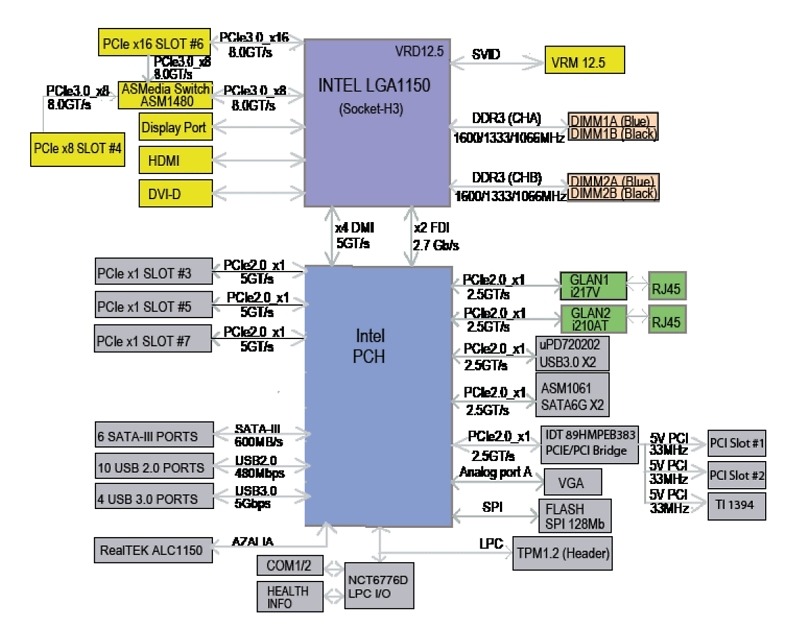

Specification

System

CPU

  • Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
  • Single Socket LGA-1150 (Socket H3) supported, CPU TDP support Up to 95W TDP
  • A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Chipset

Intel® C226 Express PCH

System Memory

Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots

BIOS

128Mb SPI Flash EEPROM with AMI BIOS

Graphic

for E3-1275 v3* only

Expansion Slot

PCI-E

  • 2 PCI-E 3.0 x16 slots (16/NA or 8/8)
  • 3 PCI-E 2.0 x1
  • 2 – 5V PCI 32bit

Mini Type Slot

N/A

Power type

ATX

Dimension

12″ x 9.6″ (30.48cm x 24.38cm)

I/O Interface

Display

  • 1 VGA port, 1 DVI – I port, 1 DP (DisplayPort) port, 1 HDMI port,
  • for E3-1275 v3* only

Storage

  • SATA3 via PCH w/ RAID 0, 1, 5, 10
  • SATA3 via ASM1061®

Ethernet

Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® Ethernet Controller I217LM

Audio

RealTek ALC1150 HD Audio

USB

  • 10 USB 2.0 ports (4 rear + 6 headers)
  • 6 USB 3.0 ports (2 rear + 4 headers)

Internal USB Port

N/A

Serial

2 COM Ports (2 headers)

PS/2 Port

1COM

TPM

TPM Header

SMBus

Digital I/O
